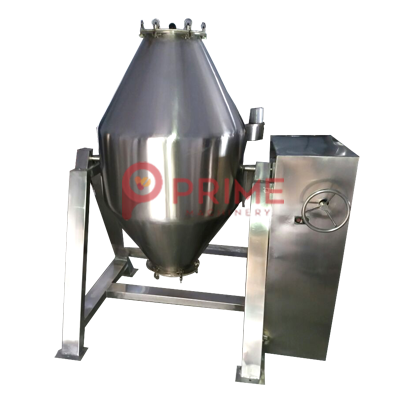

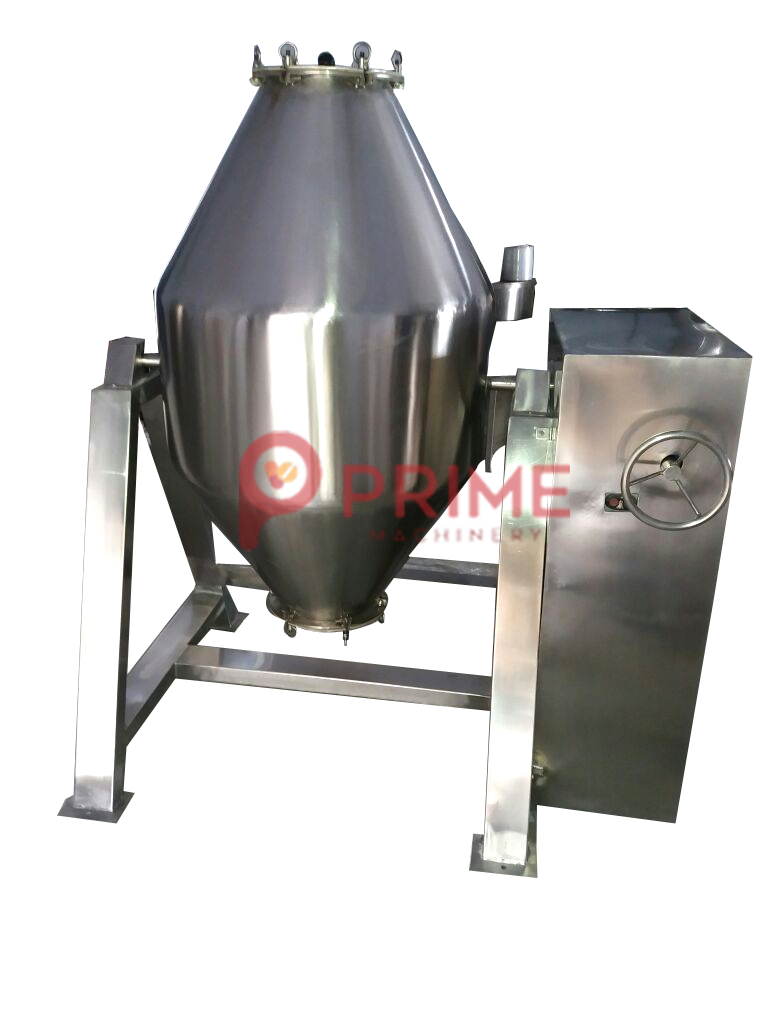

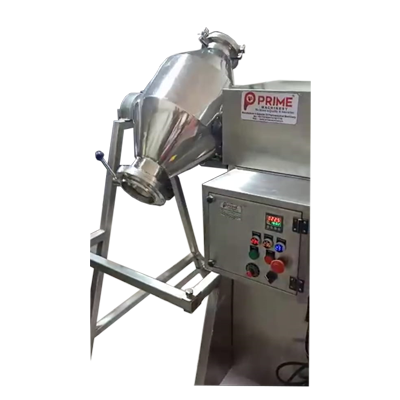

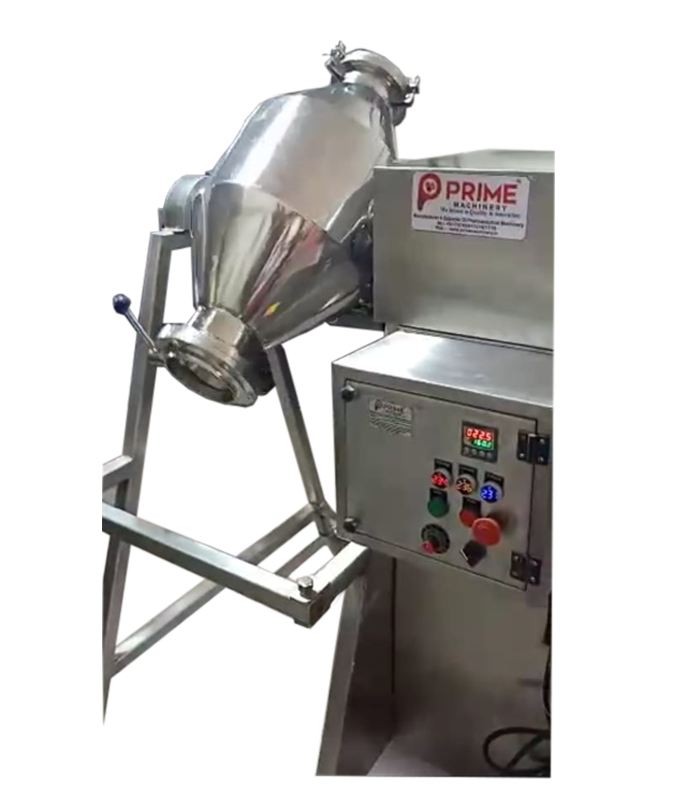

Here is a highly efficient and versatile industrial blending machine that is specifically designed for mixing granules homogeneously. We at Prime Machinery are engaged in designing and developing next generation mixers and blenders that deliver precision and quality. Owing to our top grade machines we are the best Double Cone Blender Manufacturer Ahmedabad. The Double Cone Blender is predominantly used for rubbing and tumbling of free flowing materials like powder, granules and so on. Using this particular machine enhances the results of dry mixing within a short period of time. Different models are offered with a capacity of 10kg to 300kg. This machine is sued for homogeneous mixing of materials in industries like Food and beverages, Pharmaceutical, Chemical, Agriculture, Cosmetics and many more.
Silent Features
With outstanding quality and competitive pricing we are a preferred Double Cone Blender Manufacturer Ahmedabad. We also offer customisation of our machines to better meet our client requirements
Description
| Model | 10 | 25 | 50 | 100 | 150 | 200 | 250 | 300 |
|---|---|---|---|---|---|---|---|---|
| Capacity/kg | 10 | 25 | 50 | 100 | 150 | 200 | 250 | 300 |
| Gross Volume | 35 | 80 | 150 | 300 | 450 | 600 | 800 | 900 |
| Working Capacity | 10 | 50 | 100 | 200 | 300 | 400 | 500 | 600 |
| Motor HP0 | 0.5 | 1 | 2 | 3 | 5 | 5 | 7.5 | 7.5 |
| Gear Box | 1.75" | 1.75" | 2" | 3" | 4" | 4" | 5" | 5" |
| RPM | 25 | 25 | 30 | 20 | 20 | 20 | 20 | 20 |
| Discharge Valve | NA | NA | NA | 200 | 200 | 250 | 250 | 250 |
| Safety Guard | NA | NA | YES | YES | YES0 | YES | YES | YES |
| Discharge Height | 300 | 300 | 450 | 450 | 450 | 450 | 450 | 450 |
Output Depends on Material*
Design as per customer Requirement
