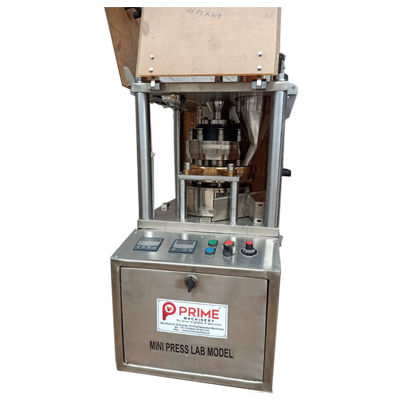

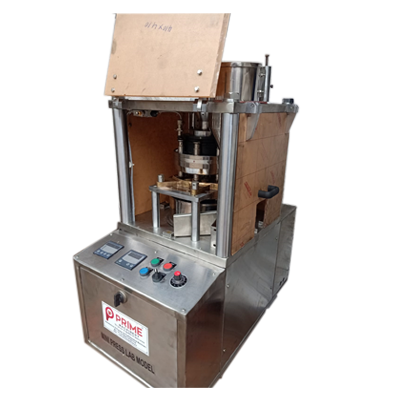

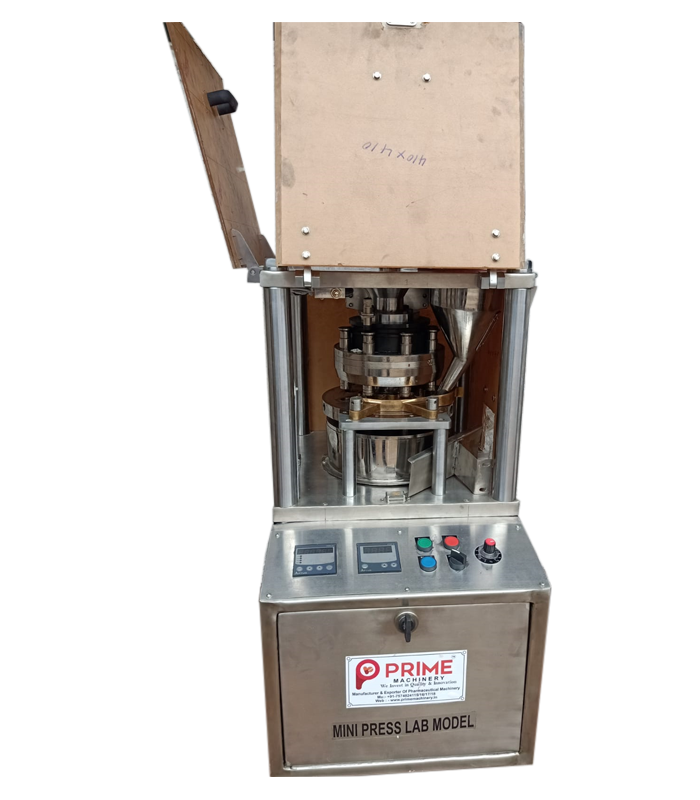

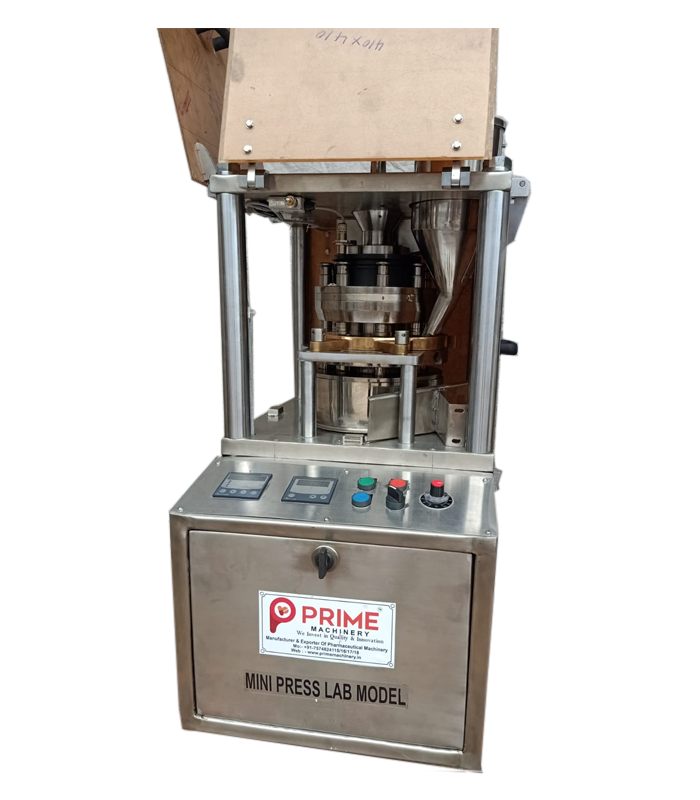

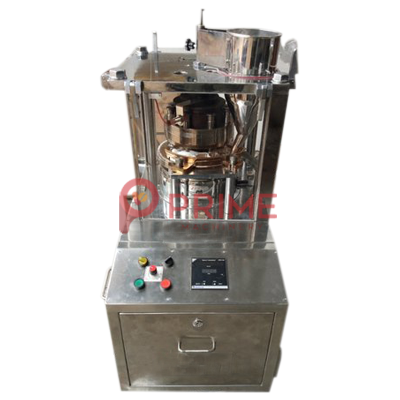

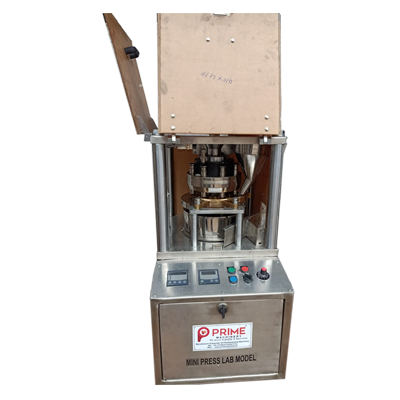

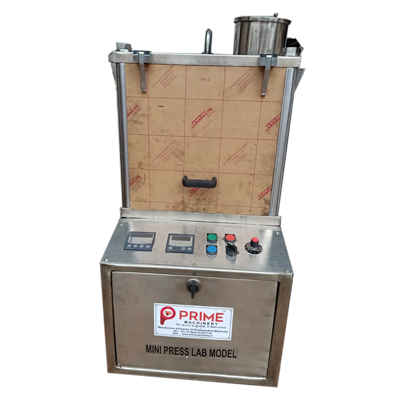

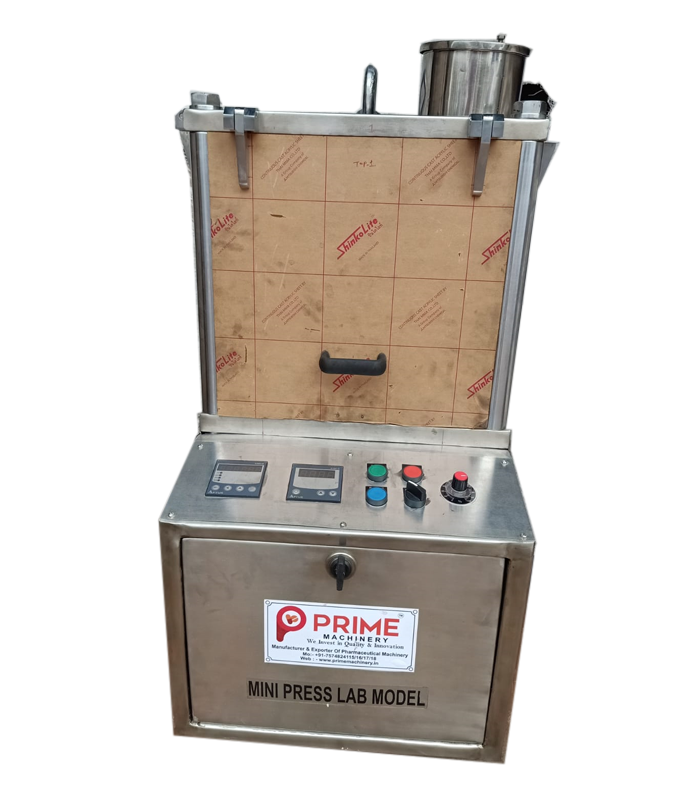

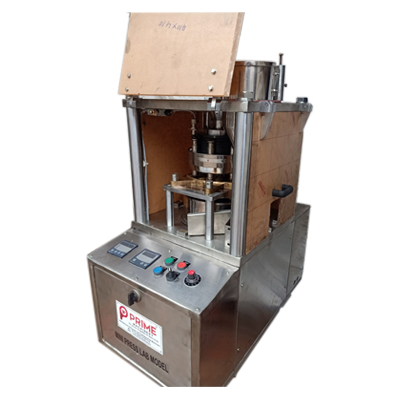

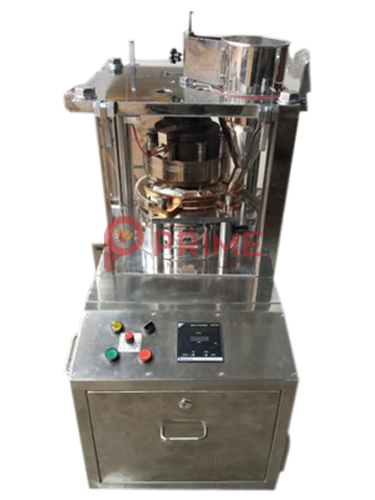

Mini Tablet Press Machine

We bring you compact yet high performance tablet press machinery. The Prime Mini Tablet Press with single rotary is a machine specifically designed for small scale industries as well as R&D purposes. Prime Machinery is a noted Mini Tablet Press Machine Manufacturer consistently offering machines with exceptional quality and performance to our clients.

We at Prime Machinery are dedicated to offering top quality machines to our customers from various industries. The Prime Mini Tablet Press also known as lab tablet press offers advanced tablet press technology in a compact form. The machine can transform power into different sizes and shapes of tablets.

Fundamentally designed for the pharmaceutical industry, the machine can also be used to manufacture toiletry and cosmetic products. This table top machine is easy to move, clean and maintain because of its user-friendly design. Some of the benefits offered by our Mini Tablet Press Machine are low noise and vibration while operating at high speed, Electronic Tablet Counting System, Pre compression facility as a standard feature, and minimum wastage of valuable material. The Square GMP Table Top Model is designed using high grade SS 316 body and components. We have established ourselves as a trusted Mini Tablet Press Machine Manufacturer consistently offering world class products at a highly competitive price.

Description

Machine Type Mini - 8 D Mini - 10 D Mini - 10 B
Model Mini Press Mini Press Mini Press
Number of Stations 8 10 10
Type of Tooling D D B
Output - Tablets/Hr 4800 / 14000 6000 / 18000 6000 / 18000
Turret RPM (Min-Max) 10-30 10-30 10-30
Max. Operating Pressure 60 KN 60 KN 60 KN
Max. Tablet Diameter 22 mm. 22 mm. 16 mm.
Max. Depth of Fill 20.5 mm. 20.5 mm. 17.5 mm.
Upper Punch Penetration 2 to 6 mm. 2 to 6 mm. 2 to 6 mm.
Diameter of Die(mm.) 38.10 38.10 30.15
Diameter of Punch(mm.) 25.34 25.34 18.99
Length of Punch(mm.) 133.6 133.6 133.6
Power 2.0 H.P. x 1440 RPM x 3 Phase x 415 Volts
Overall Dimensions(mm.) 480 x 670 x 1050 mm
Net Weight (Kgs.) 400

Output depends on material *
