Prime Machinery is a one-stop solution for pharmaceutical machineries. Our business is operational throughout the country which makes us highly accessible to clients irrespective of their location. Prime machinery maintains quality and safety standards while producing spare parts and machinery under its product line.

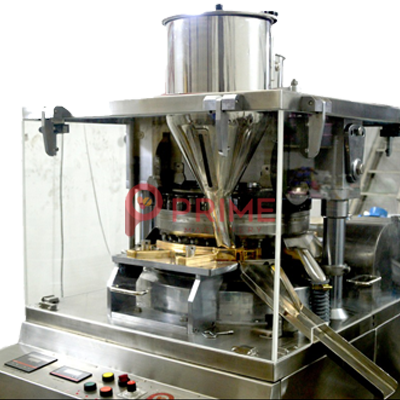

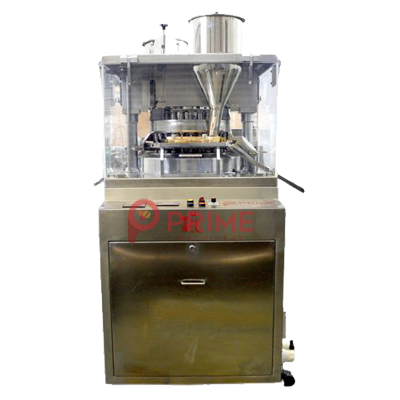

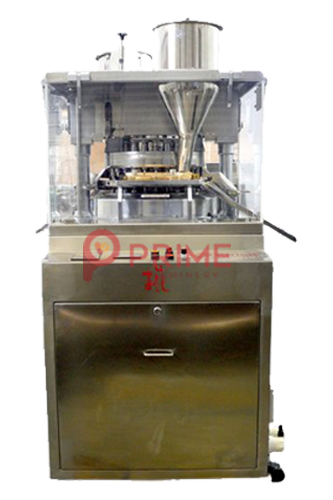

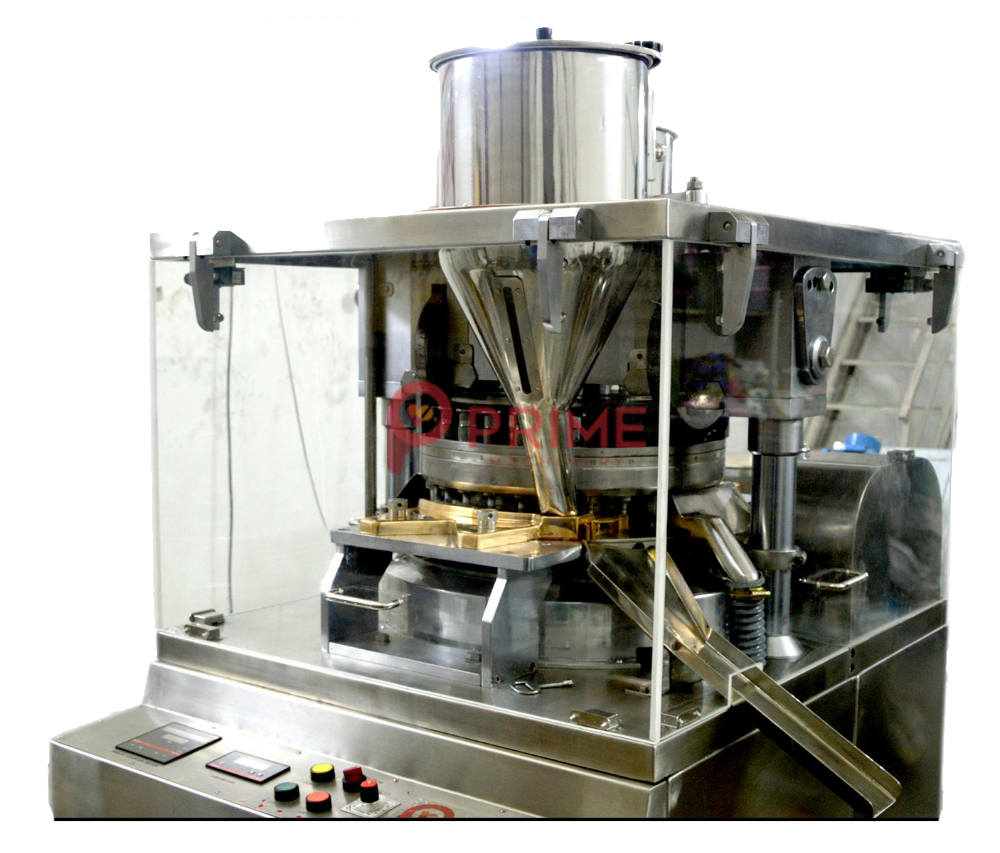

Double Side Rotary Tablet Press is specially designed for large sized batches. The machine is designed as per GMP directives and is also paired with modern technology like Electronic Digital Tablet cum RPM Counter. The sturdy body and internal components are made of alloy steel to avoid rusting. Our machine is even suitable to compress abnormal shaped tablet.
Our Double Sided Rotary promises unmatched quality for medium bath production. Safety/enhanced performance ease of operation and cleaning are some of the salient features of our machines. Designed as per cGMP standards
We provide robust machineries with high quality Engineering. We strive to provide continued technical support to all clients to ensure maximum client satisfaction.
Description
| Machine Type | 27D | 27B | 35B | 45BB |
|---|---|---|---|---|
| Number of Stations | 27 | 27 | 35 | 45 |
| Type of Tooling | D | B | B | BB |
| Output - Tablets/Hr | 54000 - 129000 | 54000 - 129000 | 70000 - 168000 | 90000 - 216000 |
| Turret RPM (Max) | 40 RPM | 40 RPM | 40 RPM | 40 RPM |
| Max. Operating Pressure | 100 KN | 60 KN | 60 KN | 60 KN |
| Max. Tablet Diameter | 25 mm. | 16 mm. | 16 mm. | 11.1 mm. |
| Max. Depth of Fill | 20.5 mm. | 17.5 mm. | 17.5 mm. | 17.5 mm. |
| Upper Punch Penetration | 1.5 to 8 mm. | 1.5 to 8 mm. | 1.5 to 8 mm. | 1.5 to 8 mm. |
| Diameter of Die(mm.) | 38.1 | 30.15 | 30.15 | 24.1 |
| Diameter of Punch(mm.) | 25.34 | 18.99 | 18.99 | 18.99 |
| Length of Punch(mm.) | 133.6 | 133.6 | 133.6 | 133.6 |
| Power | 5.0 H.P. x 1440 RPM x 3 Phase x 415 Volts | |||
| Overall Dimensions(mm.) | 1040 x 1000 x 1790 | |||
| Net Weight (Kgs.) | 1400 | |||
Output depends on material *
