We are one of the best Fluid Bed Dryer manufacturers and exporters in all of India. Designed with precision and using advanced technologies, supervised by the country’s best dedicated professionals, our Fluid bed dryers are employed in various chemical, dairy, dye, food, pharmaceutical and polymer process industries. We manufacture fluid bed dryers that comply with all set guidelines and standards of the industry.

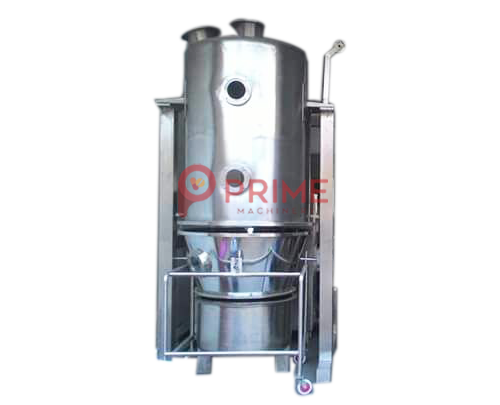

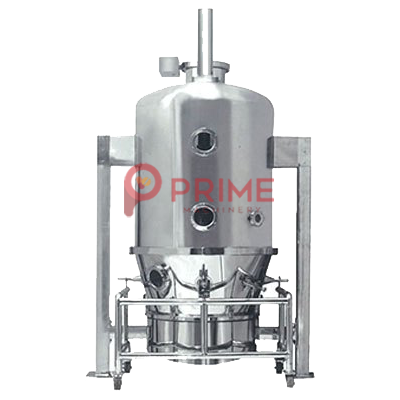

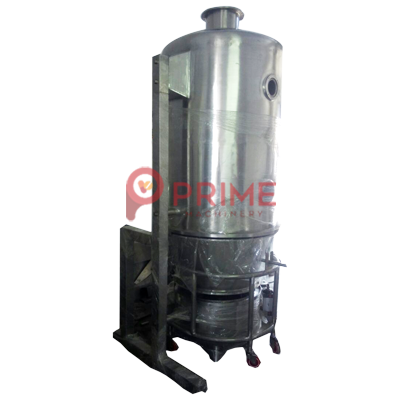

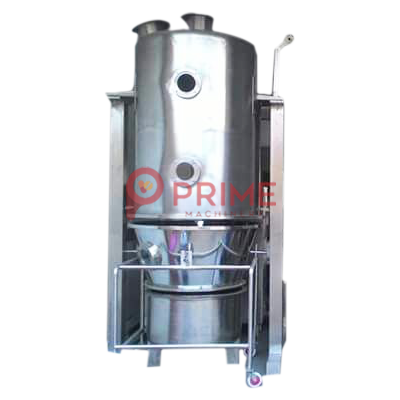

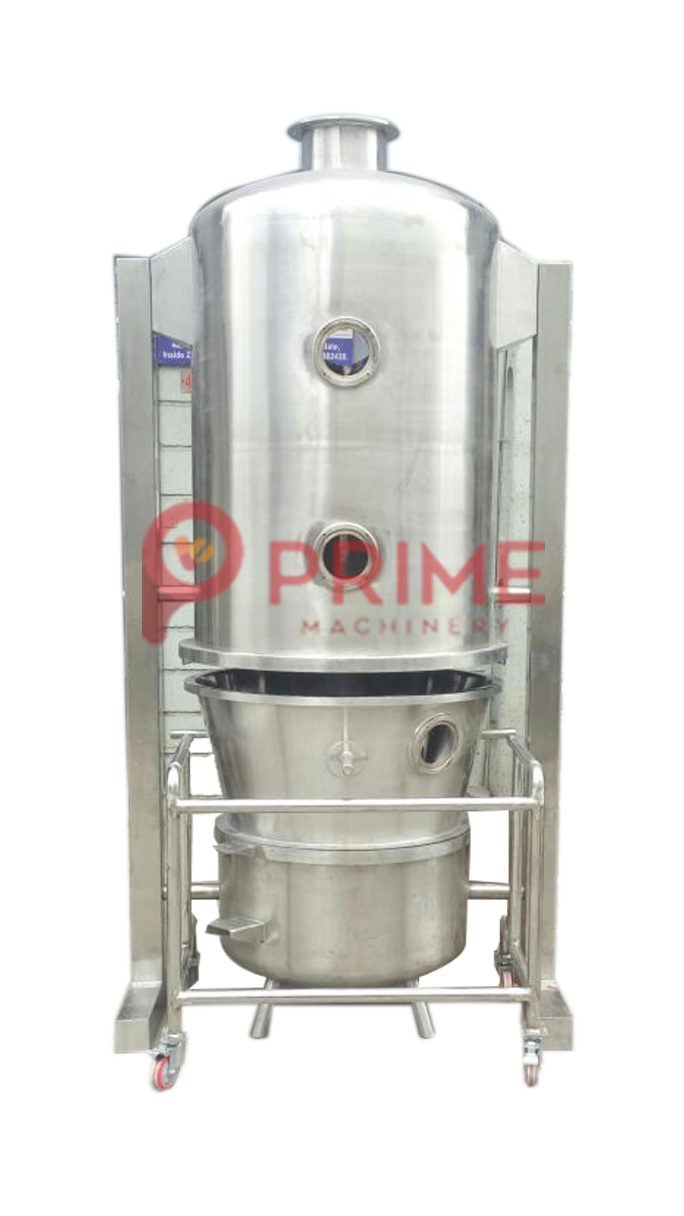

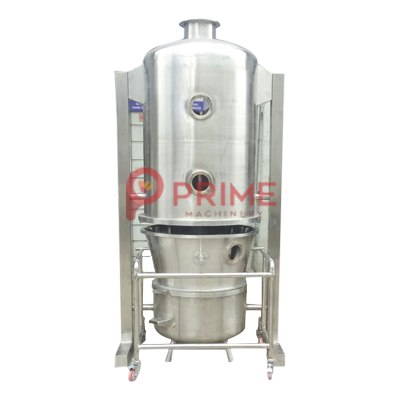

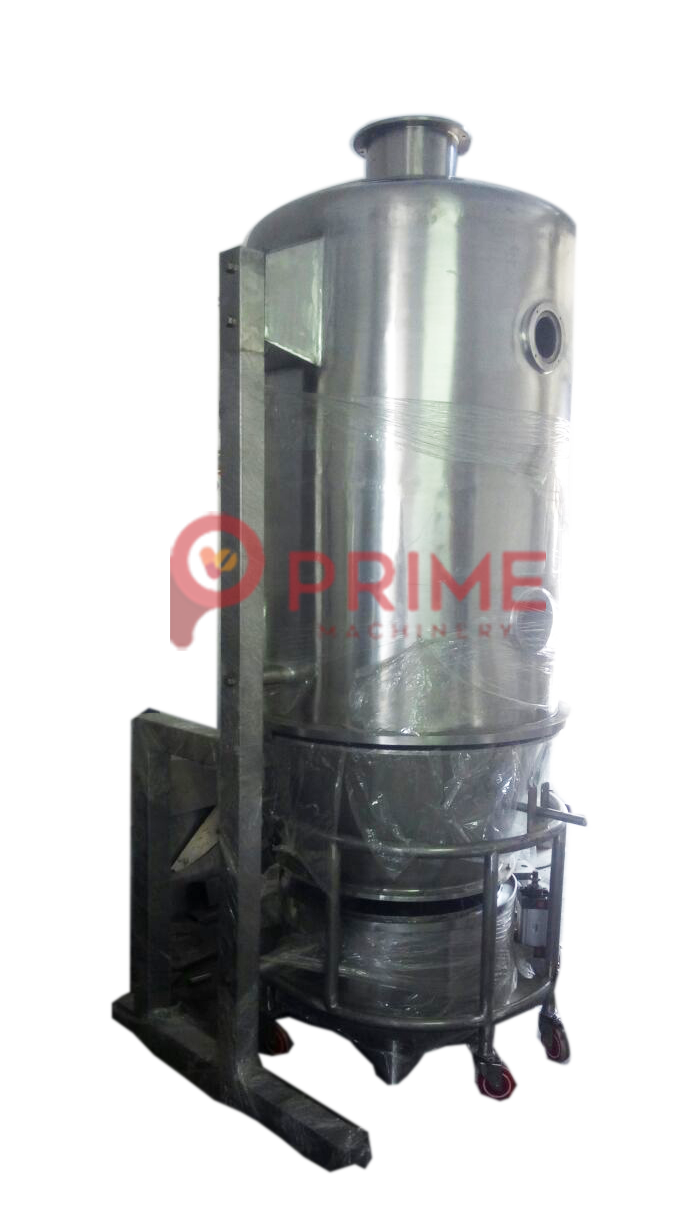

The Fluid Bed Dryers are the most efficient solution for drying course materials and wet granules. Being used in various industries these days, the fluid bed dryers are better alternatives to rotary dryers for the cooling and drying of a wide range of processed products that require a proper control of time and temperature. All the contact parts of the fluid bed dryer system are made up of high quality stainless steel, either SS 316 or SS 304.
Our enterprise is amongst the best manufacturers of efficient and high grade industrial machinery and equipments. Our machinery and equipment exceed all the quality checks and parameters which make them the best choice for great productivity at low costs of operation.
Description
Model | 15 Kg | 30 Kg | 60 Kg | 120 Kg | 200 Kg | 300 Kg |
---|---|---|---|---|---|---|
Container Volume LTRS | 46 | 71 | 142 | 288 | 475 | 650 |
Batch Size Min. & Max. | 10 to 15 | 20 to 30 | 40 to 60 | 80 to 120 | 160 to 200 | 200 to 300 |
Blower Motor HP | 5 | 5 | 10 | 20 | 25 | 30 |
Air Flow CFM | 429 | 706 | 1059 | 1882 | 2588 | 3235 |
Steam Consumption (kg/hour) | 36 | 50 | 72 | 144 | 216 | 250 |
Steam Pressure (kg/cm sq.) | - | - | - | 3.5 | - | - |
Electric Heater (Kw) | 20 | 20 | 36 | - | - | - |
Compressed Air Pressure Bar | 6 Bar | 6 Bar | 6 Bar | 6 Bar | 6 Bar | 6 Bar |
Drying Temprature | 35'C-80'C | 35'C-80'C | 35'C-80'C | 35'C-80'C | 35'C-80'C | 35'C-80'C |
Electrical Supply | 3 Phase 415 Volts | 3 Phase 415 Volts | 3 Phase 415 Volts | 3 Phase 415 Volts | 3 Phase 415 Volts | 3 Phase 415 Volts |
Output depends on material *
